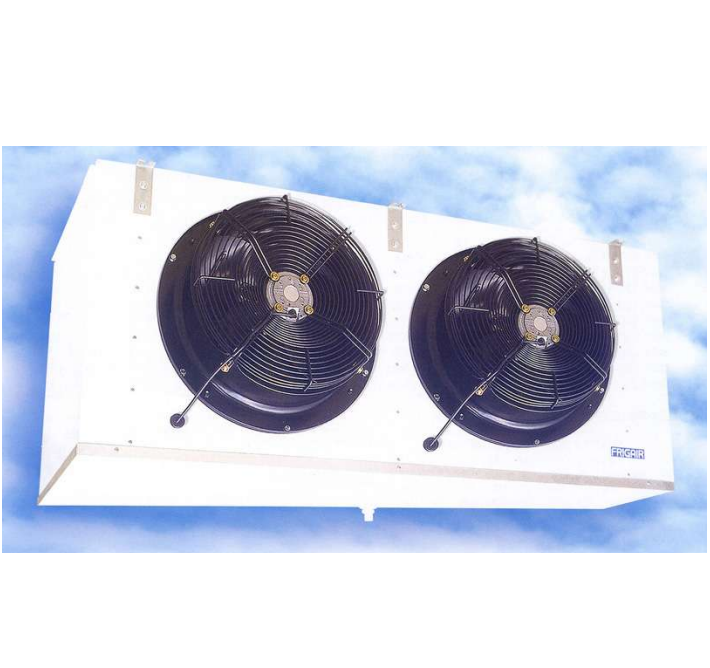

Frigair Unit Cooler SMK
Frigair Unit Cooler SMK SMK Series Frigair Unit Cooler Evaporator Unit Cooler Kuala Lumpur (KL), Malaysia, Selangor, OUG Supplier, Suppliers, Supply, Supplies | A T C Marketing Sdn Bhd
'FRIGAIR' UNIT COOLER SMK SERIES

4 Fin/Inch.
Evaporating Temperature: @-25'C Et.T 7'C - Freezer Electric Defrost

MODEL
CAPACITY
(BTU/HR)
NO.FAN MOTOR SIZE
AIRTHROW
(FT)
ELECTRIC
HEATER
(WATTS)
VOLTAGE
(V)

NO. DIA (INS) M3/HR WATTS RPM
SMK 45 - L 5,100 1 14 2,500 130 1,400 55 1,665 240
SMK 65 - L 7,400 1 14 2,800 130 1,400 55 2,355 240
SMK 85 - L 9,700 1 14 3,200 130 1,400 50 2,725 240
SMK 120 - L 12,400 1 14 3,200 130 1,400 50 3,775 240
SMK 160 - L 17,600 2 14 6,200 130 1,400 70 3,775 240
SMK 180 - L 20,600 2 14 6,700 130 1,400 70 4,280 240
SMK 240 - L 27,500 3 14 8,000 130 1,400 78 5,965 240
SMK 300 - L 33,000 3 14 8,000 130 1,400 78 5,965 240
SMK 360 - L 38,600 3 14 10,800 130 1,400 78 8,865 240
SMK 400 - L 46,300 4 14 10,908 130 1,400 78 8,865 240


Evaporating Temperature: @-5'C Et.T1 8'C - Chiller Air Defrost

MODEL
CAPACITY
(BTU/HR)
NO.FAN MOTOR SIZE
AIRTHROW
(FT)
VOLTAGE
(V)
TXV CONN.
INLET X ONTLET
(INS)
DRY
WTG
(KG)
NO. DIA (INS) M3/HR WATTS RPM
SMK 45 - H 6,500 1 14 2,500 130 1,400 55 240 1/2 x 3/4 33
SMK 65 - H 9,500 1 14 2,800 130 1,400 55 240 1/2 x 3/4 33
SMK 85 - H 12,500 1 14 3,200 130 1,400 50 240 1/2 x 3/4 41
SMK 120 - H 15,880 1 14 3,200 130 1,400 50 240 1/2 x 1.1/8 46
SMK 160 - H 22,500 2 14 6,200 130 1,400 70 240 1/2 x 1.1/8 58
SMK 180 - H 26,500 2 14 6,700 130 1,400 70 240 5/8 x 1.1/8 66
SMK 240 - H 35,500 3 14 6,800 130 1,400 70 240 5/8 x 1.5/8 84
SMK 300 - H 42,500 3 14 8,000 130 1,400 78 240 5/8 x 1.5/8 97
SMK 360 - H 49,500 3 14 10,800 130 1,400 70 240 5/8 x 1.5/8 112
SMK 400 - H 59,500 4 14 10,908 130 1,400 68 240 5/8 x 1.5/8 112
